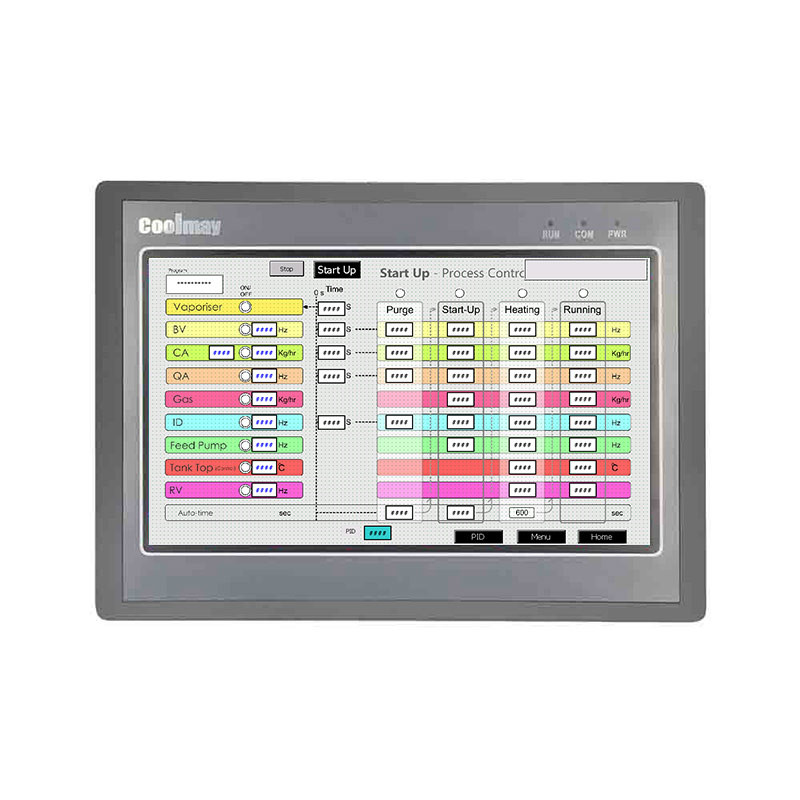

10inch Touch Screen HMI With PLC 60K Colors 30DI / 30DO 16AI / 8AO

Name: 10inch Touch Screen HMI With PLC 60K Colors 30DI 30DO 16AI 8AO
Brand: Coolmay
Price: 1 USD

Buy cheap 10inch Touch Screen HMI With PLC 60K Colors 30DI / 30DO 16AI / 8AO product

Brand Name : Coolmay

Model Number : EX3G-100HA-38MT-16AD8DA-485P

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union, Credit Card

Supply Ability : 1500 pcs per week

Delivery Time : 5-8 work days

Packaging Details : Carton

Model : EX3G-100HA-38MT-16AD8DA-485P

Type : 10.1"TFT

Dimension : 275*194*36mm

Cutout Size : 262*180mm

Power Consumption : 6-8W

Contact Now

HMI touch screen panel 10inch Programmable Logic Controller All In One

10inch Touch Screen HMI With PLC 60K Colors 30DI / 30DO 16AI / 8AO

HMI/PLC all-in-one

1. EX3G-43HA/HB series, 4.3” TFT display, 60K colors, up to12DI /12DO, 4AI/2AO, Rs485/Rs232 can be added

2. EX3G-70KHA/KHB series, 7” TFT display, 60K colors, up to 30DI /30DO, 16AI/8AO, Rs485/Rs232 can be added.

3. EX3G-100HA series, 10” TFT display, 60K colors, up to30DI /30DO, 16AI/8AO,

Product features

Product information

Naming rule:

1.Series	EX3G
2. HMI	43HB/43HA/43KHB:4.3” 50KHB:5” 70KHA/70KHB:7” 100HA:10” 150HA: 15”
3.Digital input and output (DI/DO)	10(5DI/5DO), 24(12DI/12DO), 44(24DI/20DO), 60(30DI/30DO), etc.
4.Module type	M- Main module of universal controller
5.Digital output (DO) type	R- relay T- transistor RT- both relay and transistor
6.Analog input (AD)	4 channels for 43H, 12 for 70H/100H
7. Analog output (DA)	2 channels for 43H, 8 for 70H/100H
8.AI type	EK- EK thermocouple (can be customized as T, S or J type), PT- Pt100, NTC- thermistor 10k, 50k, 100k A0- 0-20mA A4- 4-20mA V- 0-10V V5- 0-5V
9.AO type	A0- 0-20mA A4- 4-20mA V- 0-10V V5- 0-5V
10.High speed counting	C1- singe phase high-speed counting C2- AB phase counting C3- ABZ phase counting If customized 6 channels single 10KHz, the model is 6C10. Commonly it is 4-channel single phase 60KHz plus 2-channel 10KHz, or 2 to 3-channel AB(Z) phase 60KHz at most. It can be specially customized as 6-channel single 100KHz or 2-channel AB(Z) phase 60KHz plus 1-channel 10KHz.
11.High speed pulse	P- 100KHz high-speed pulse Commonly it is 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. It can be customized 8-channel 10-100KHz. That high speed counting plus pulse must be within 480KHz.
12.Optional COM port	485P/232P: the port is made in PLC 485H/232H: the port is made in HMI 43HB(HA)/43KHB/50KHB: 2x RS485 ports on PLC and 1x RS232 port on HMI are available. 70KHA(KHB)/100HA/150HA: 1x 485 or 2x 485 ports(one is changed from the existed 232 port), CAN, network port (can’t coexist with HMI network port ), Wifi(cover the existed 232 port) on PLC are available. 1x RS232 or RS485, network port (can’t coexist with the one on PLC) on HMI are available.

10inch Touch Screen HMI With PLC 60K Colors 30DI / 30DO 16AI / 8AO
