Name: Relay Output Programmable PLC CPU Unit 12DI 12DO Step Motor Driver
Brand: Coolmay
Price: 1 USD

Brand Name : Coolmay

Model Number : L02M24R

Certification : CE

Place of Origin : China

MOQ : 1 peice

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, PayPal, Alipay

Supply Ability : 2000 pcs per day

Delivery Time : 3-7 working days after payment done

Packaging Details : Carton Box

Type : PLC CPU

I/O : 12DI/12DO

I/O Level : NPN/PNP

Capacity : 32K steps

Protocol : Modbus RTU/TCP

Software : Free

Contact Now

Relay Output Programmable PLC CPU Unit 12DI 12DO Step Motor Driver

PLC Logic Controller 12DI 12DO Relay Output Analog I/O 4-20mA 0-10V Step Motor Driver

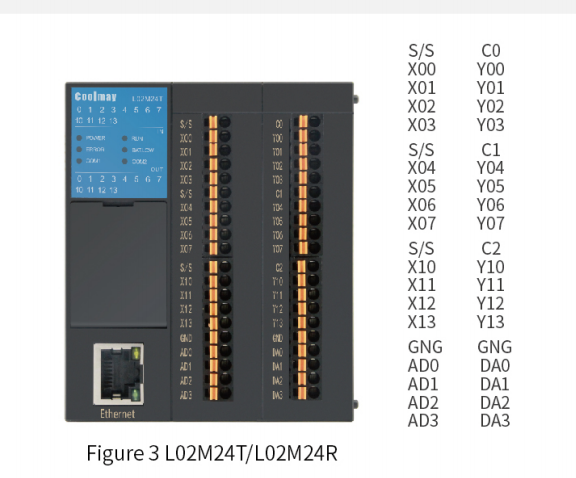

Model:L02M24R

- 24 points IO(12DI+12DO)

- 8 points AI(4AD+4DA)0-10V,0-5V,4-20mA,0-20mA

- CPU module,Relay output,Internal Ethernet

- COM port:RS-485*2,RS232,Type-C
- Downloading port,Micro SD port,CAN COM port

- Support max 512 points I/O,program capacity 32k steps,Use push-type terminals

Series	Model	Description

L02 Host	L02M24R	CPU module,Relay output,Internal Ethernet,RS-485*2,RS232,Type-C Downloading port,Micro SD port,CAN COM port；24 points IO(12DI+12DO)and 8 points AI(4AD+4DA),support max 512 points I/O,program capacity 32k steps,Use push-type terminals
	L02M24T	CPU module,Transistor (NPN) output,Internal Ethernet,RS-485*2,RS232,Type-C Downloading port,Micro SD port,CAN COM port；24 points IO(12DI+12DO)and 8 points AI(4AD+4DA),support max 512 points I/O,program capacity 32k steps,Use push-type terminals
	L02M32R	CPU module,Relay output,Internal Ethernet,RS-485*2,RS232,Type-C Downloading port,Micro SD port,CAN COM port；32 points IO(16DI+16DO),support max 512 points I/O,program capacity 32k steps,Use push-type terminals
	L02M32T	CPU module,Transistor (NPN) output, Internal Ethernet,RS-485*2, RS232, Type-C Downloading port, Micro SD port, CAN COM port; 32 points IO(16DI+16DO),support max 512 points I/O,program capacity 32k steps,Use push-type terminals

Relay Output Programmable PLC CPU Unit 12DI 12DO Step Motor Driver
